Outdoor fiber optic cross connection cabinet 144 fibers made of steel
ODF-OC144-D is outdoor fiber optic cabinet, also called fiber optic cross connection cabinet. It is an outdoor optical equipment that designed for outdoor optical nodes in access network.
Fiber optic cabinet ODF-OC144-D can load 144pcs SC simplex fiber optic adapters and 144pcs fiber optic pigtails. It is often used in outdoor streed roadside with pedestal.
Specification:
| Model | Capacity | Dimension(MM) | Remark |
| ODF-OC144-D | 144FO | 525*900.2*280 | Max.12pcs fiber optic splice tray 12FO (Model: USOT-003) |
Technical Parameters:
Nominal work wave-length: 850nm, 1310nm, 1550nm
Protection level: IP65
Work Temperature: -45℃-+85℃
Relative humidity: ≤85%(+30℃)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥50dB(UPC),60dB(APC)
Isolation resistance(between frame and protection grounding):＞1000 MΩ/500V(DC)
| Wavelength | Waterproof standard | Temperature | Insertion Loss | Return loss | Connector type | Pigtail length |
| 850nm, 1310nm, 1550nm | IP65 | -45 ~ 85 | Less than 0.2dB | more than 50dB | SC, LC, FC | 1.5M |
Material:
Cabinet body: Cold-roll steel
Splice tray: ABS plastic
Features:
High intensity and anti-erosion performance
Able to counter abrupt climate change and extreme environment
Capacity can be flexibly customized as required
Installation is quick and convenient
Built-in direct splice unit is capable for providing direct connection function.
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers
Pictures:

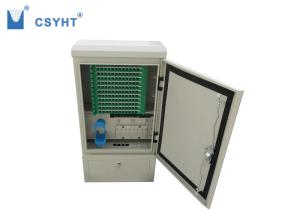

Cabinet without pedestal
