FTTH NAP IP65 ABS Anti UV Material 16 24Cores Fiber Optic Junction Box For Indoor Outdoor Usage
FTTH NAP IP65 ABS Anti UV Material 16 24Cores Fiber Optic Junction Box For Indoor Outdoor Usage (BP023) is a hot-selling FTTH box with good performance and excellent apperance, easy installation and simple structure.
It is with 18 SC simplex adapter ports and 3 splice trays, can install different type of PLC splitter for fiber distribution and splicing; differernt cable ports for different cable diameter.
Features:
| P/N | BP023 | IP Rate | IP65 |
| Dimensions | 232x385.5x130.5mm | Splice Capacity | Max. 48FO |

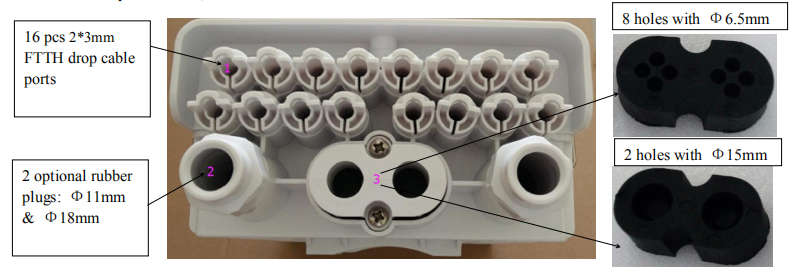

| Cable Port | 2pcs Φ15mm entry cable ports;2pcs Φ18mm entry cable ports & 16pcs 2*3mm drop cable ports | Splice Tray | 3pcs fiber optic splice trays, each 12 fibers; 36 fibers (Max.can load 4pcs tray for 48 fiber splicing) |
| Color | White, Black | Material | high strength ABS plastic |
| Adapter Port | 18 SC simplex | Application | Outdoor wall/ pole mounted |
| Splitter Type | Can load 2pcs 1:8 PLC splitter or 1pc PLC 1:16 steel tube type splitter |

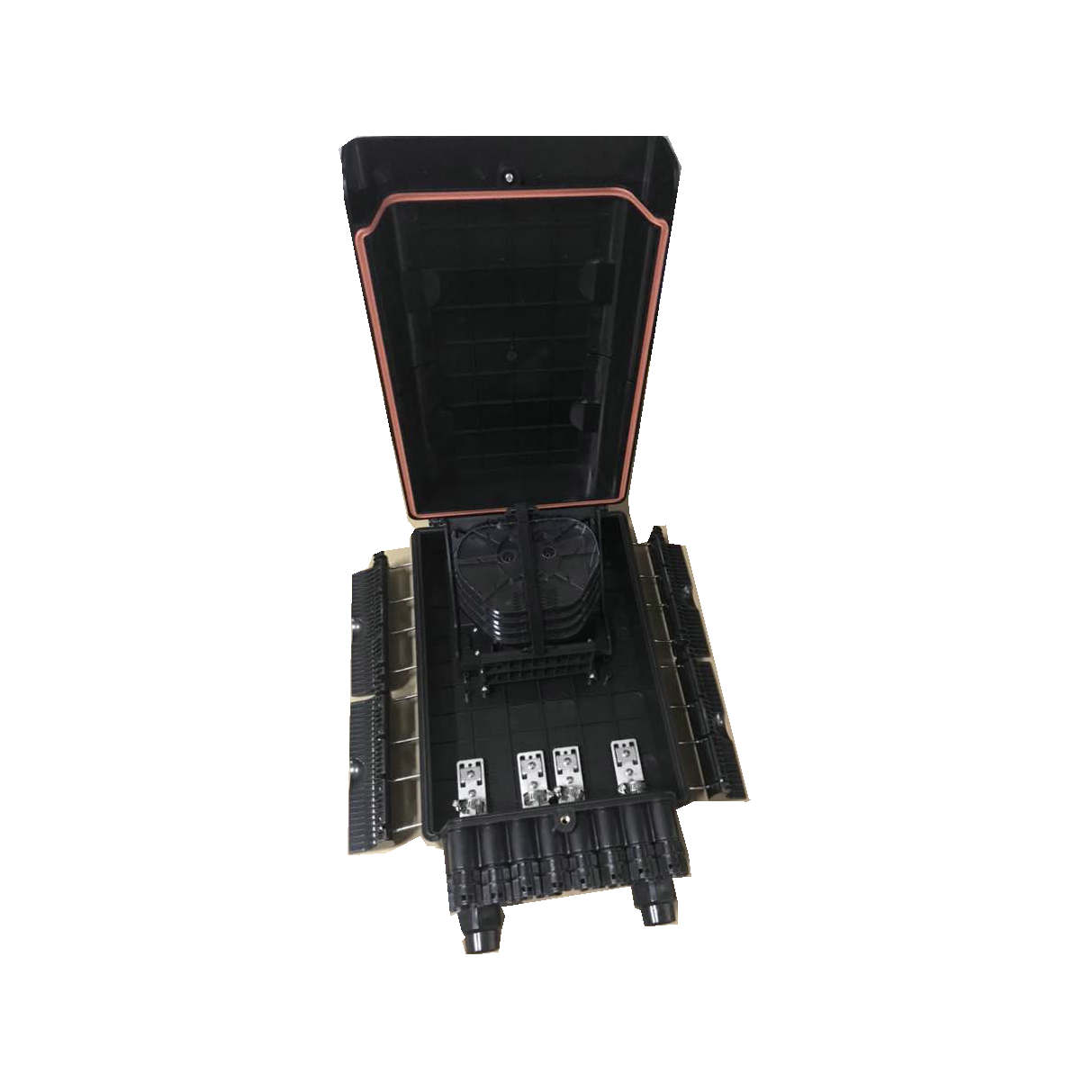

Product Pictures:
Application:
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Other Similar Products:
Factory Information (more information please view our company website: www.szyht.com.cn):
Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.
v It was established in 2003, and grows up rapidly.
v In 2011, branch factory was established in Huizhou city.
v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.
v In November 2016, factory moved to YHT industry park.
v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.
The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.
