IP68 High Quality FTTH 288 cores dome type Fiber Optic Splice Closure Mechanical sealing
Description:
CV026 is an oval dome type fiber optic splice closure that support fiber splicing and protection. It is waterproof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct or buried application.
Features:
Impact resistant PP material, black color
Mechanical sealing structure, IP68
Max. 12pcs OST-061 fiber optic splice tray, max. 288 fibers
Can load max. 18pcs SC simplex adapters
Two splitter space for PLC 1x8, 1x16
6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting
Working temperature -35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance.
Support wall mounted, pole mounted, aerial hanged, direct buried.

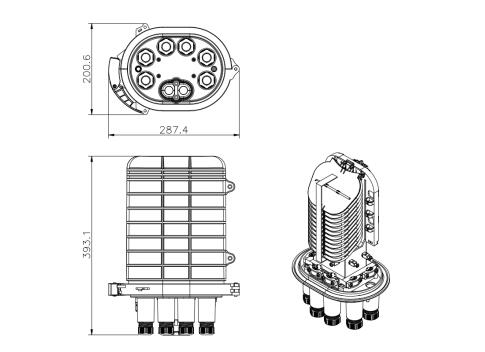

Dimension: (mm)

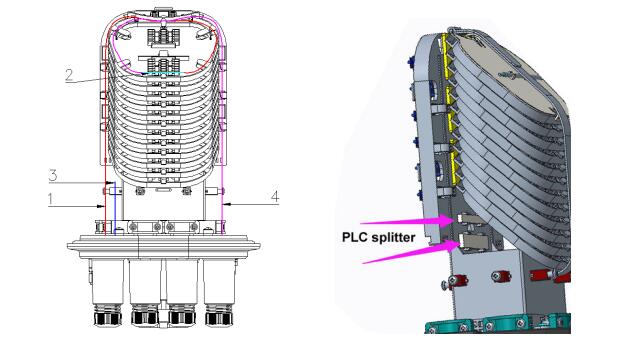

Instruction:
- Input fiber optic cable 2. Heat shrinkable protection sleeve
3. Cable strengthen member 4. Output fiber optic cable
Accessory list:
| Item | Name | Specification | Qty |
| 1 | Plastic tube | Outside Ф4mm, thickness 0.6mm, plastic, white | 1 meter |
| 2 | Cable tie | 3mm*120mm, white | 12 pcs |
| 3 | Inner hexagon spanner | S5 black | 1 pc |
| 4 | Heat shrinkable protection sleeve | 60*2.6*1.0mm | As per using capacity |
Packing information:
4pcs per carton, each carton 61x44x45cm

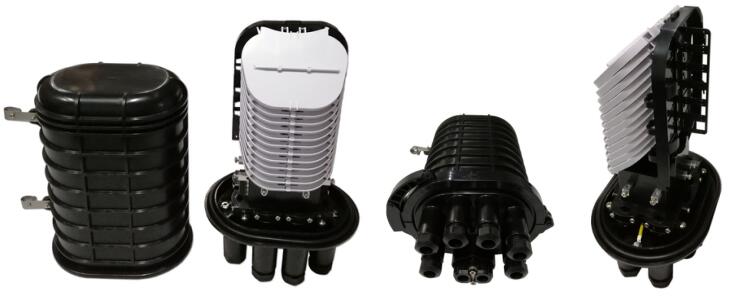

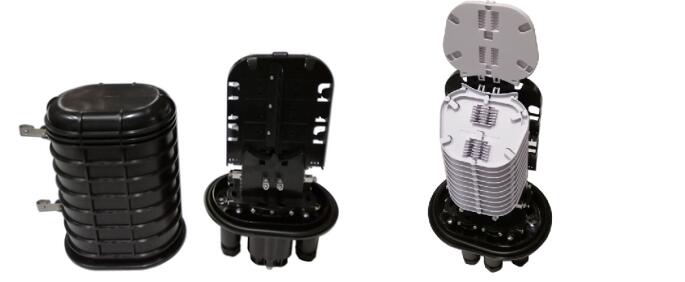

Images:
