Fiber Optic Junction boxes Domo for cables of 24, 60, 96, 144, 288 Oval splice closure

Junction boxes Domo for cables of 24, 60, 96, 144, 288

Description:

CV026 is Junction boxes Domo for cables of 24, 60, 96, 144, 288 that support fiber splicing and protection.

The junction and branch box for fiber optic cables must ensure the following functions to the spliced fiber assembly:

1- Mechanical protection, protecting the integrity of the fibers.

2- Humidity barrier.

3- Appropriate design for the distribution and path of the gain of the loose tube (protective tube).

4- Organizers with amplitude for the gain and ordering of spliced fibers.

5- Both the interior space and the organizers must have the necessary amplitude to avoid affecting the radii of curvature of the fibers and not cause loss of emission or distortion.

6- Tightness with respect to the external environment.

7- Aptitude for the work of the installer without interferences with the rest of the non-spliced fibers.

8- Easy reintervention without causing damage to the fibers already installed.

9- Reuse of all the components of the box.

10- Feasibility to equip the organizers according to the needs.

11- Distribution and arrangement of the organizers in a stackable way, without hindering the placement and removal of the same.

12- The splice tray should be handled without tools.

13- The splice tray should remain in position when handling the box

14- It must have necessary accessories for installation in walls or ceilings of cameras, which applies to 24, 60, 96, 144 F.O and 288FO.

Features:

Impact resistant PP material, black color

Mechanical sealing structure, IP68

Max. 12pcs OST-061 fiber optic splice tray, max. 288 fibers

Can load max. 18pcs SC simplex adapters

Two splitter space for PLC 1x8, 1x16

6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting

Working temperature -35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance.

Support wall mounted, pole mounted, aerial hanged, direct buried application.

Specification:

We also provide heat sealing structure junction box CV026A.

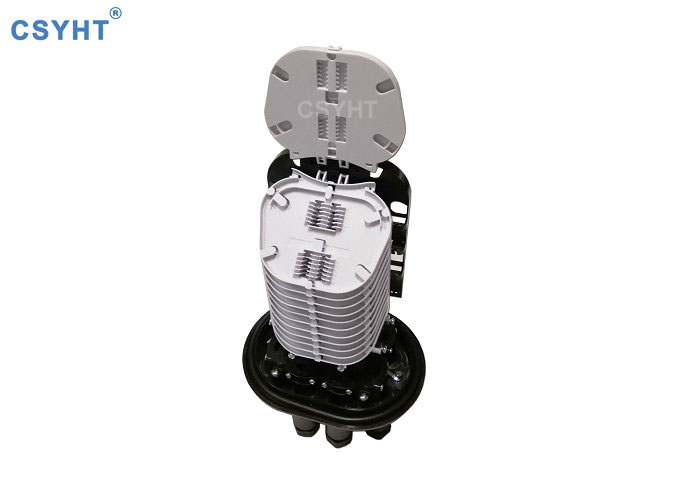

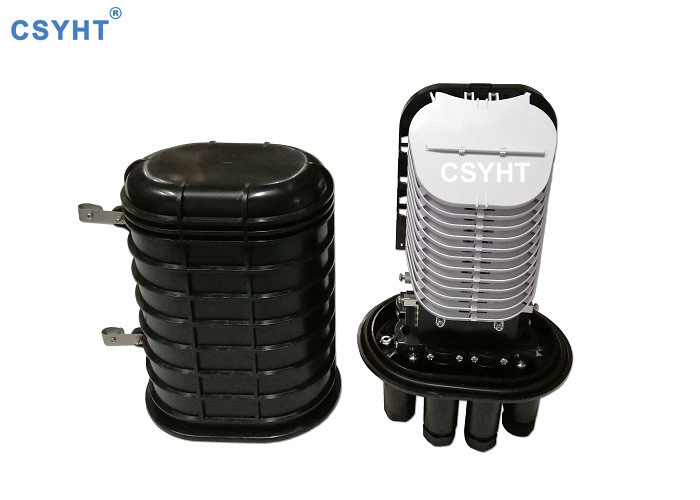

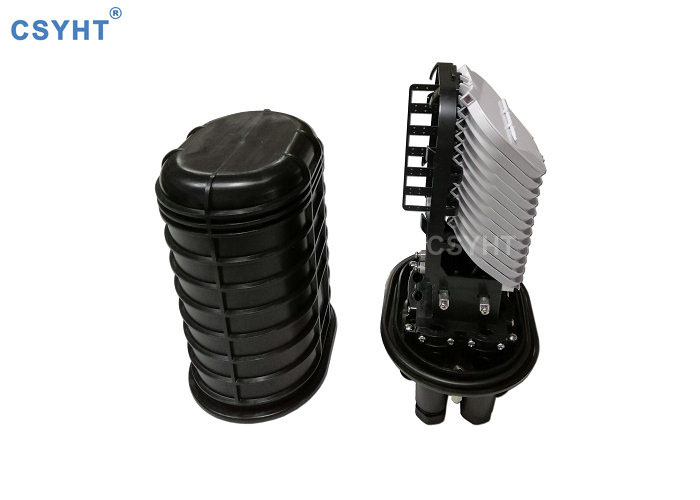

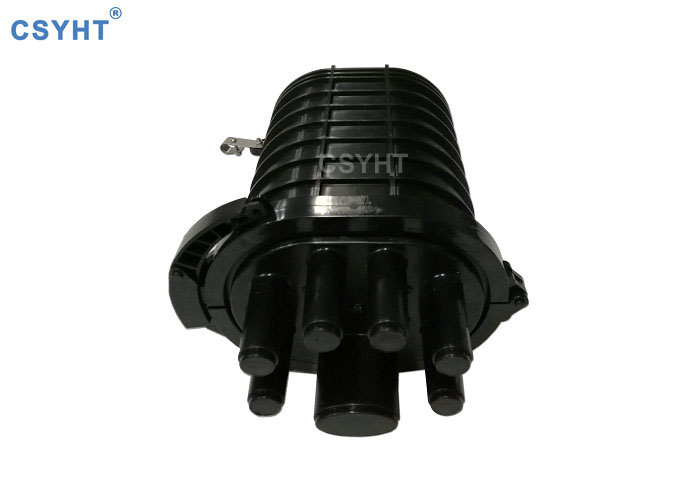

Fiber Optic Junction boxes Domo for cables of 24, 60, 96, 144, 288 Oval splice closure Images
