24 12 SC Simplex Adapter Ports 1U 19 Inch Rack Mount Fiber Optic Patch Panel
24 12 SC Simplex Adapter Ports 1U 19 Inch Rack Mount Fiber Optic Patch Panel (ODF-RS12/24/48-BM) is a simple and practical ODF, it is without front cable management plate and front door, suitable for installation and management of fiber optic pigtails, ribbon and bundle cables. It has a self-locking aluminum sliding accessory that prevents the drawer from falling off as it moves.
Features:
- Standard size, light weight and reasonable structure
- Slide out drawer for easy cable management;FC, SC, ST, LC adapter ports optional
- Front access panel design for easy operation.Suitable for 19’’ standard optic distribution cabinets
- 4 fiber cable entry ports at rear side; Max. capacity 48 fibers
- Material: Cold-roll steel; White or black color optional
Specification:
| P/N | ODF-RS12/24/48-BM | IP Rate | IP32 |
| Dimensions | 441*293*43.6mm | Splice Capacity | Max. 48FO |
| Cable Port | 4 cable ports | Splice Tray | 2 splice tray |
| Color | White, Black | Material | Cold roll steel |
| Adapter Port | 12 or 24 SC simplex | Application | Indoor rack mounted |
| Feature | 1U, 2U, 3U, 4U ODF can be customized according to customer's requirements |

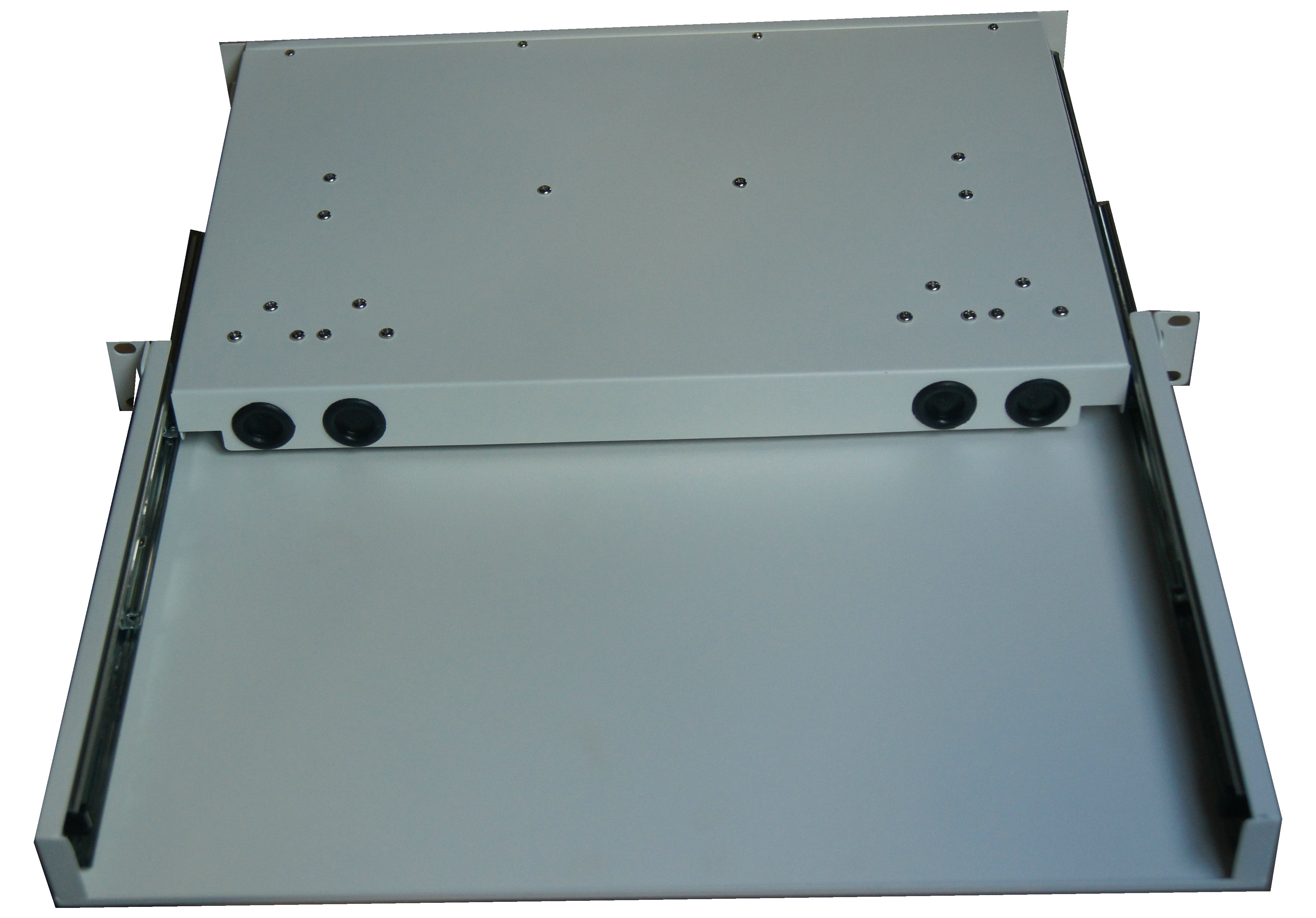

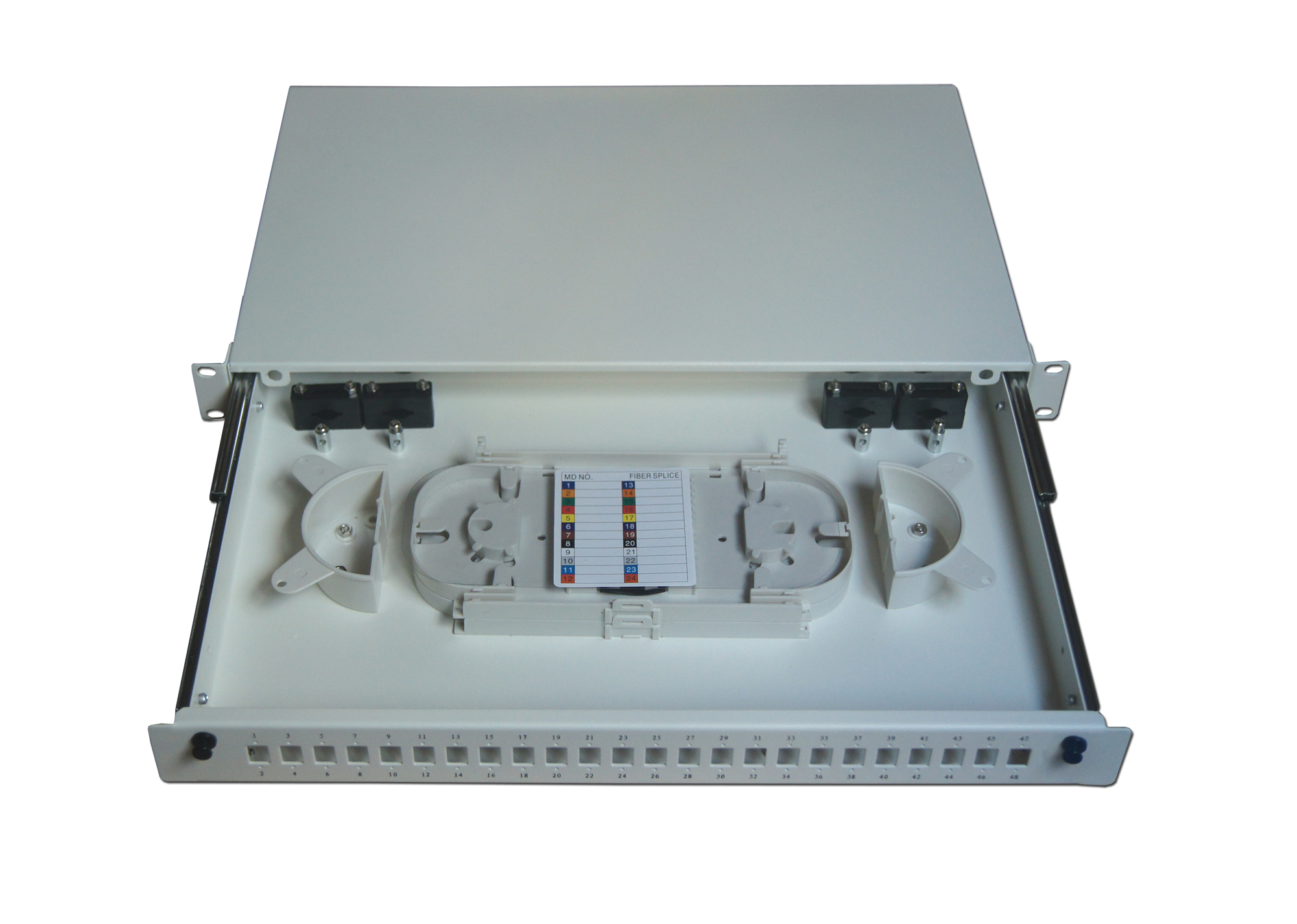

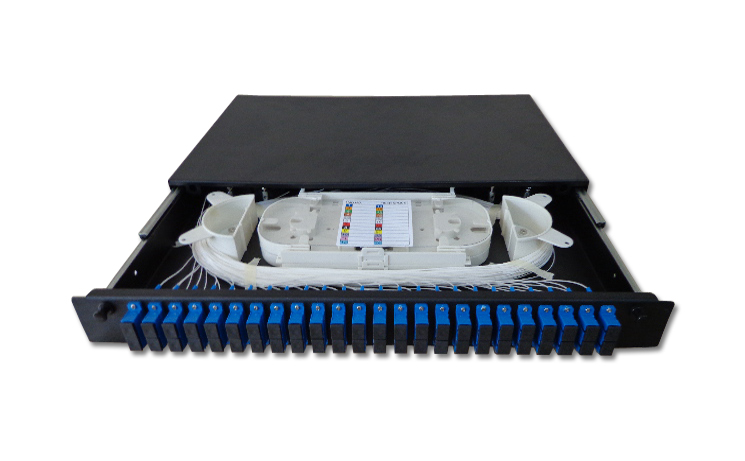

Product Pictures:
Application:
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Other Similar Products (can be customized according to your requirements):
Factory Information (more information please view our company website: www.szyht.com.cn):
Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.
v It was established in 2003, and grows up rapidly.
v In 2011, branch factory was established in Huizhou city.
v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.
v In November 2016, factory moved to YHT industry park.
v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.
The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.
