24 Core IP68 Vertical Bamboo Dome Fiber Splice Enclosure

Name: 24 Core IP68 Vertical Bamboo Dome Fiber Splice Enclosure
Brand: CSYHT/OEM/NM
Price: 9.1 USD

China 24 Core IP68 Vertical Bamboo Dome Fiber Splice Enclosure wholesale

Brand Name : CSYHT/OEM/NM

Model Number : CV009/48C

Certification : CE RoHS ISO

Place of Origin : Shenzhen China

MOQ : 10pcs

Price : USD 9.1 per unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs per day

Delivery Time : 10days

Packaging Details : Carton box

Material : ABS plsatic

Dimension : φ140*300.5mm

Splice Tray : Max 4pcs cassette 12core

Max. Capacity : 48 fibers

Cable Port : 3 round & 1 big port

Sealing : Heat shrinkable sealing

Application : Outdoor aerial hanged, pole mountable, wall-mount

Service : OEM/ODM Customize available

Usage : Digicom networking FTTH

Contact Now

ABS IP68 VERTICAL BAMBOO (DOME) 24 CORE FIBER SPLICE JOINT ENCLOSURE

Model: CV009/48C

Describtion:

CV009/48C is with excellent protector of fibre optic joints from external environment such as UV, water and weather with heat shrinkable sealing leak proof sealing having IP 68 protection.

Specifications:

1) 3 round port and 1 big port, with optical fiber cable diameter from 8-20mm.

2) Sealing type: heat shrinkable sealing.

3) Well designed, easy to splice fiber cable inside.

4) Applications for: Ducts mounting, Aerial hang up, Wall Mounting and Pole Mounting.

5) Standard with aerial mount kits, optional accessories for wall-mount and pole-mount.

Item
Dimension ( mm )	140*300.5
Weight ( Kg )	2.5
Round Port ( mm )	3 small port & 1 big port
Material	ABS
Max Capacity of Cores Per Splice Tray	6( Single ) / 12( double)
Max Capacity of Splice Trays/ Closure	4
Max Capacity	24 ( Single ) / 48 (double)
Sealing Structure of Cable Entry Port	Heat-shrinkable Sealing Structure
Sealing Structure of Box	Silicon Gum Material

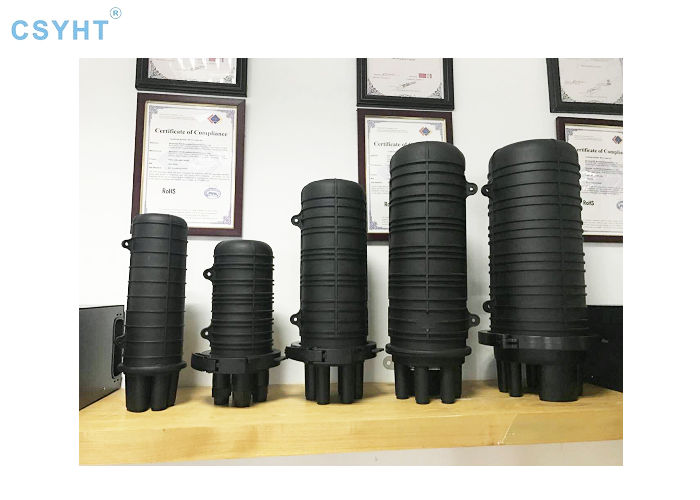

Picture:

24 Core IP68 Vertical Bamboo Dome Fiber Splice Enclosure
