FC SC FTTH 12core ODF Optic Distribution Frame

Name: FC SC FTTH 12core ODF Optic Distribution Frame
Brand: CSYHT
Price: 1 USD

China FC SC FTTH 12core ODF Optic Distribution Frame wholesale

Brand Name : CSYHT

Model Number : ODF-IW12

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Product Name : Optic Distribution Frame

Color : Black or White

Material : Metal

Fiber Type : Single Mode & Multimode

Fiber Adapter : SC, ST, LC, FC...

Dimension : 40.5x38x8.5cm

Contact Now

FTTH Wall Mount 12 Core Indoor ODF Optic Distribution Frame

Overview:

Indoor wall type fiber optic distribution frame can manage both single fiber, ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.

Features:

With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation

Application:

Telecommunications
Fiber to the home (FTTH)
LAN/ WAN
CATV

Parameters:

Model	Fiber Quantity	Dimension(cm)	Weight(Kg)
ODF-IW12	12	40.5x38x8.5	4.0

Order Informations:

ODF﹣I W 12

① ② ③ ④ ⑤

①Name: “ODF”: optic distribution frame

② ③Type: “I”: indoor using; “W”: wall-mount type

④Fiber quantity: “12”: 12 cores

FC SC FTTH 12core ODF Optic Distribution Frame

Product Tags:

12core ODF Optic Distribution Frame

FTTH ODF Optic Distribution Frame

FC SC ODF Patch Panel

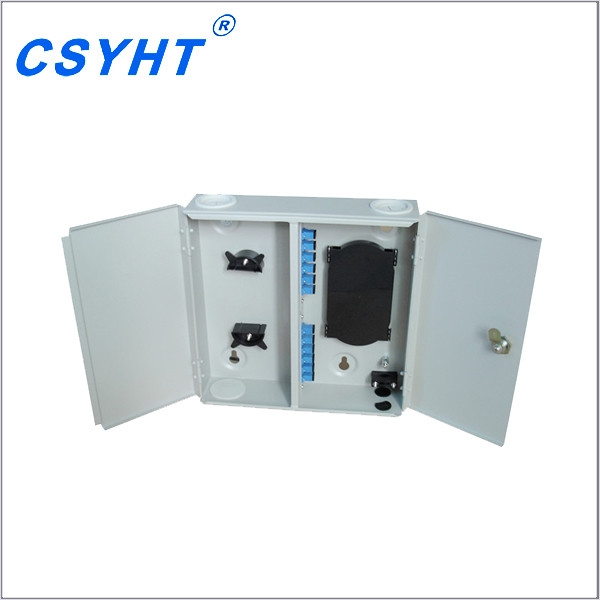

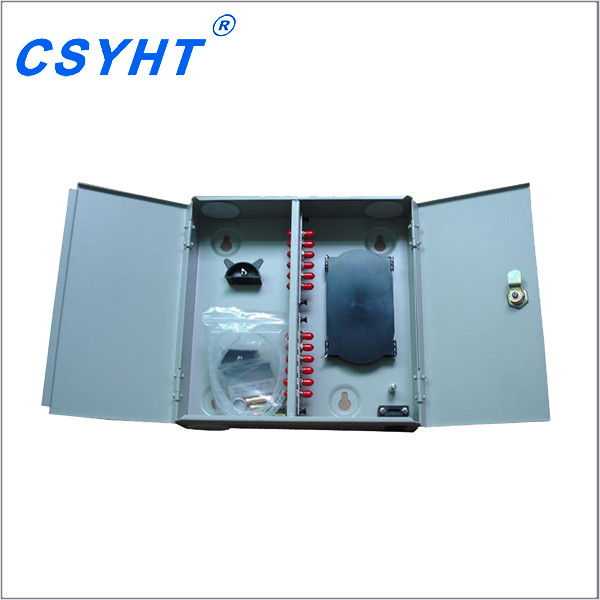

FC SC FTTH 12core ODF Optic Distribution Frame Images
