Outdoor IP68 16 Cable Ports PP Plastic 288 Cores Fiber Splice Joint Closure
Description:

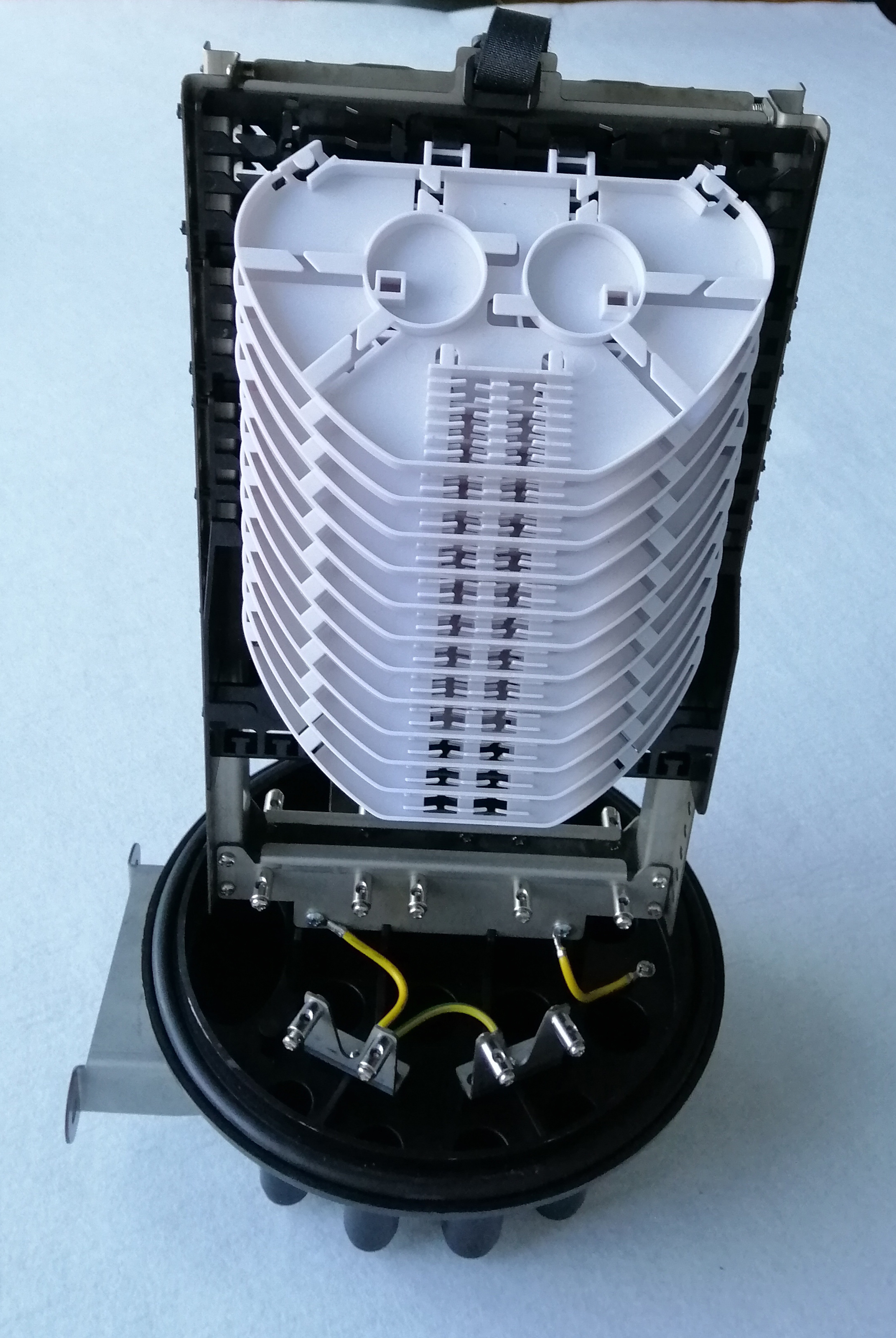

CV027 is a big dome type fiber optic splice closure. It has 1 oval cable port support cable entry without cutting and 16 round cable ports for cable entry and exit. There are 24pcs fiber optic splice tray OST-063 for max. 288 fiber splicing and junction. This closure can be used in temperature -35℃~70℃ environment, cold and heat resistant, electrical insulation, chemical corrosion resistance.
Features:
Material: impact resistant PP
Sealing structure: heat shrinkable sealing
IP standard: IP68 waterproof and dust-proof
Color: Black
Capacity: 24pcs OST-063 splice trays, max. 288 fibers
Cable ports: 16 round cable ports (4pcs Φ18mm,4pcs Φ20mm and 8pcs Φ26mm)
1 oval cable ports for supporting cable entry without cutting
Application: outdoor wall mounted, pole mounted, aerial hanged, direct buried, duct
Specification:
| Model | Dimension | Material | Splice tray Qty | Max.capacity | Cable ports |
| CV027 | φ304.2x502mm | PP plastic | 24pcs | Max. 288 fibers | 1 oval port + 16 round ports |
Packing information:
| Carton | Carton size | Qty/CTN | Weight |
| Inner carton | 28.5*28*51cm | 1pc/ctn | 4kgs |
| Outside carton | 58.5*57.5*53cm | 4pcs/ctn | 16kgs |
Accessories:
| Item | Name | Specification | Qty |
| 1 | Cable tube | Outside diameter 4.0mm, thickness 0.6mm, plastic, white color | 1 meter |
| 2 | Cable tie | 3mm*120mm, white | 12 pcs |
| 3 | Heat shrinkable protection sleeve | 45mm*2.6*1.2 | As per using capacity |
| 4 | Round cable port heat shrinkable tube | Φ25*L100mm | 8 pcs |
| 5 | Round cable port heat shrinkable tube | Φ35*L120mm | 8 pcs |
| 6 | Oval cable port heat shrinkable tube | Φ60*L150mm | 1 pc |
