PP Heat Shrinkable 144c Fiber Splice Enclosure IP68

Name: PP Heat Shrinkable 144c Fiber Splice Enclosure IP68
Brand: CSYHT
Price: 1 USD

China PP Heat Shrinkable 144c Fiber Splice Enclosure IP68 wholesale

Brand Name : CSYHT

Model Number : CV023

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : L/C, T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Product Name : Fiber Splice Enclosure

Environment : Outdoor

Waterproof : IP68

Material : PP with UV, ABS Inside

Structure : Heat Shrinkable Sealing

Cable port : 4 port & 1 oval port

Contact Now

Outdoor IP68 Waterproof Heat Shrinkable Sealing 144 Core Fiber Splice Enclosure

Description:

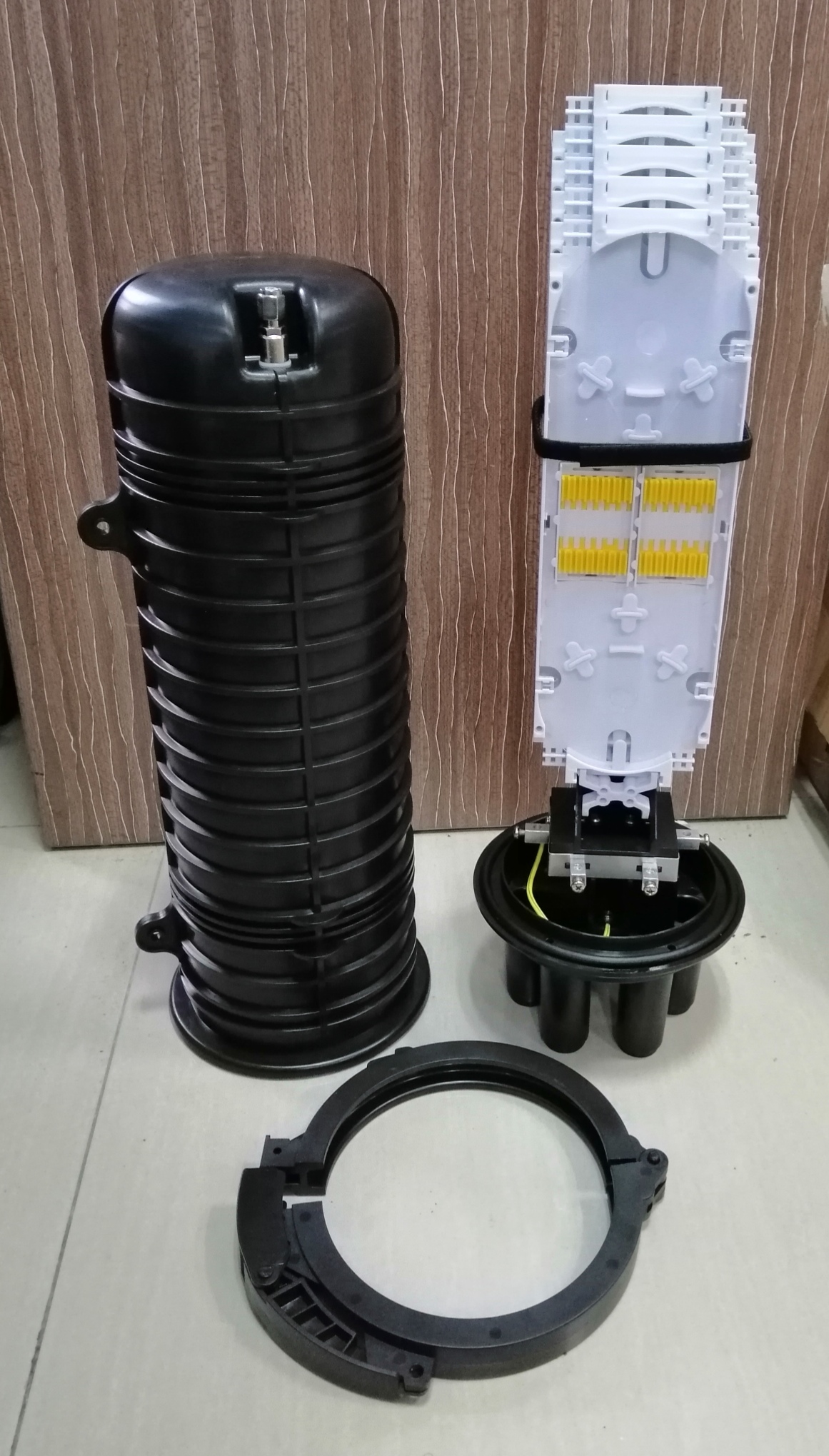

CV023 is a dome type fiber optic splice closure that used for optical fiber cable splicing, joint and protection. It is water proof and dust proof and suitable for outdoor aerial hanged, pole mounted, wall mounted, duct, buried application.

Features:
Material: Outside high impact PP+UV closure body, inside ABS splice tray
Sealing structure: Heat shrinkable sealing
IP standard: IP68 waterproof and dust proof, with pressure valve.
Cable port: 1 oval cable port 69*40mm and 4 round cable port Φ25mm

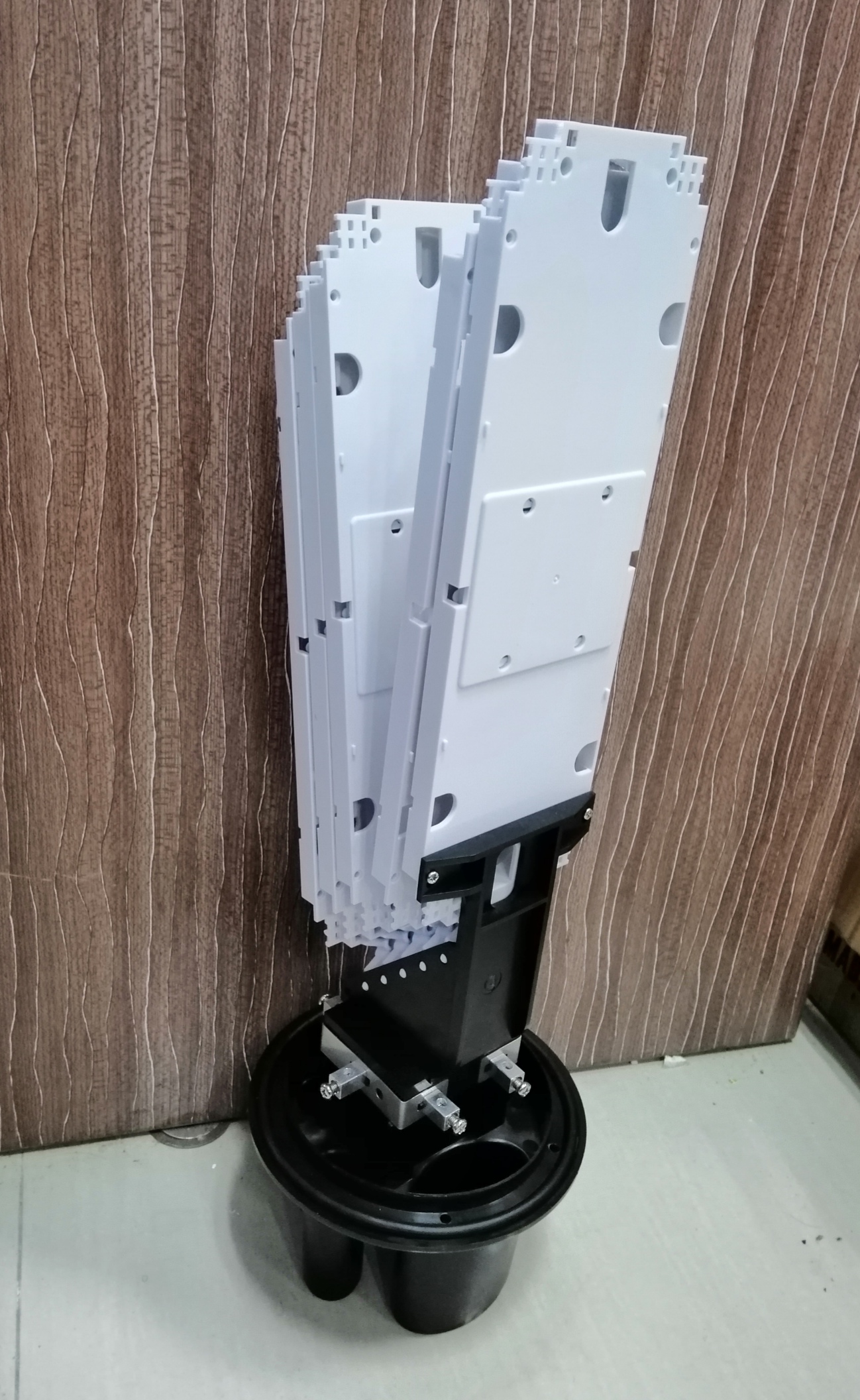

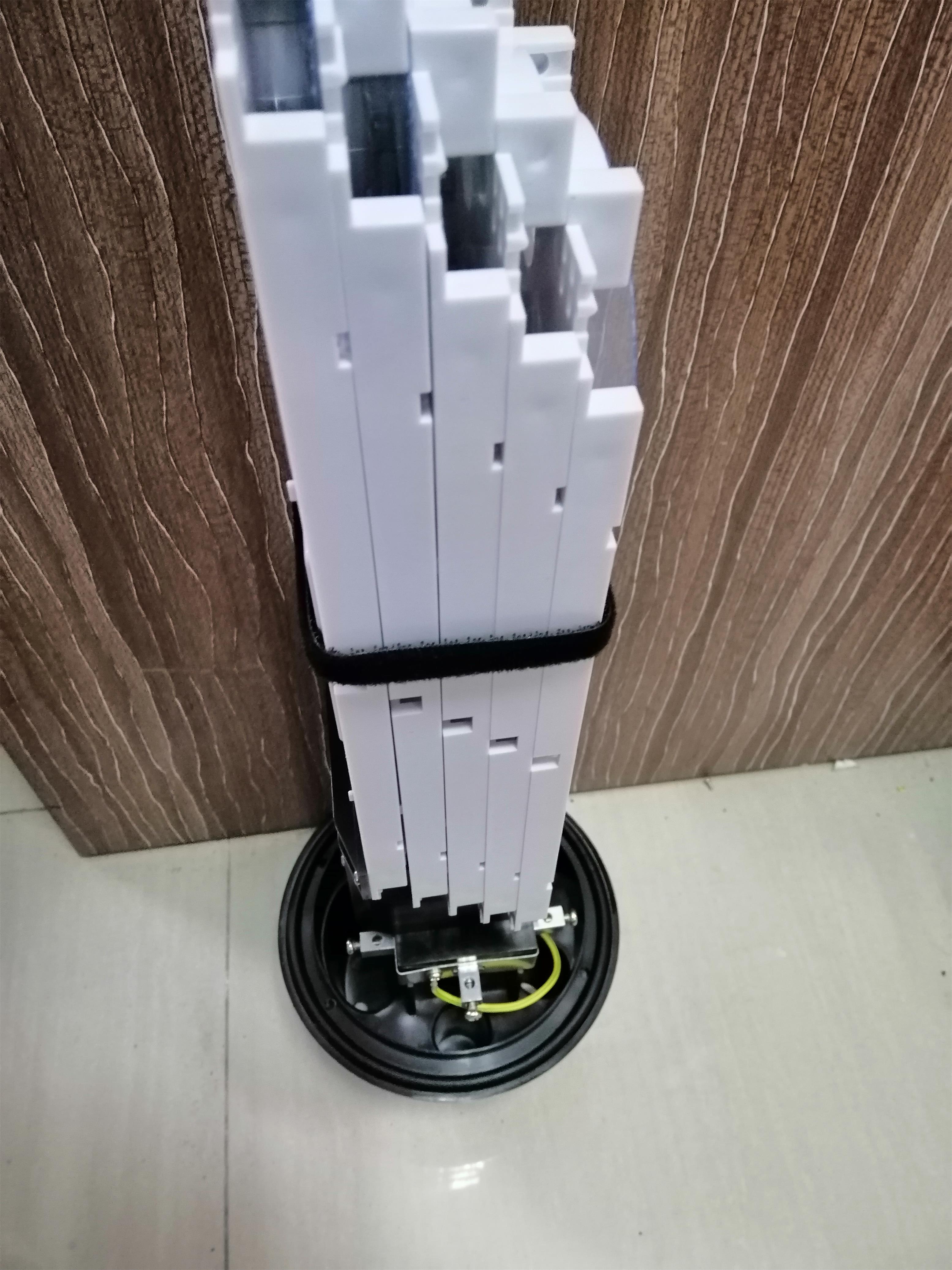

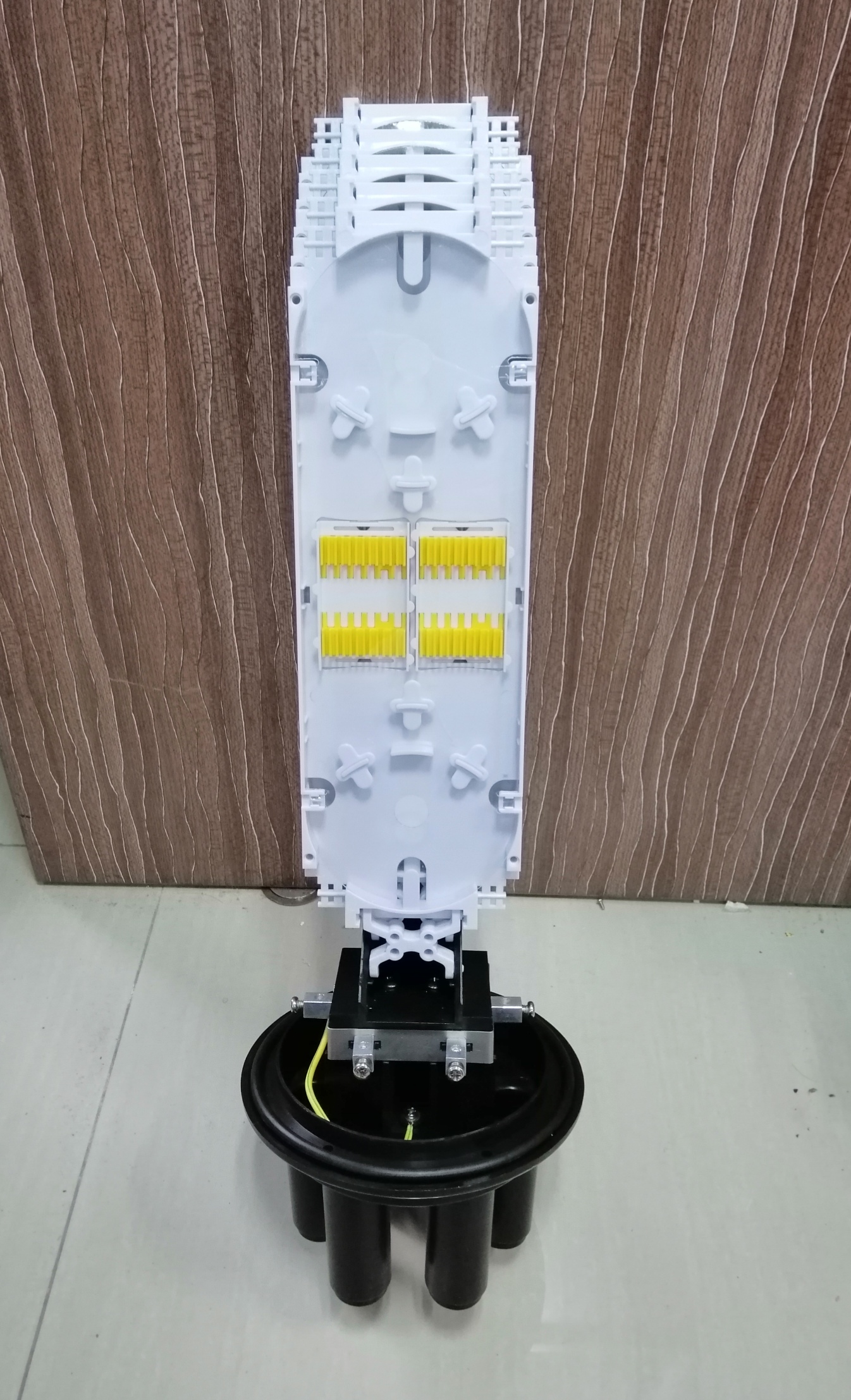

Splice tray qty: Max. 6pcs OST-016 splice trays,
each tray 24 fibers splicing.
Capacity: Max. 144 fibers
Electrical performance: with grounding device

Specification:

Model	Dimension	Material	Splice tray	Max. capacity	Cable port	Structure
CV023	Ф151.7x549mm	PP	6 PCS	144 FO	4 port & 1 oval port	Heat shrinkable sealing

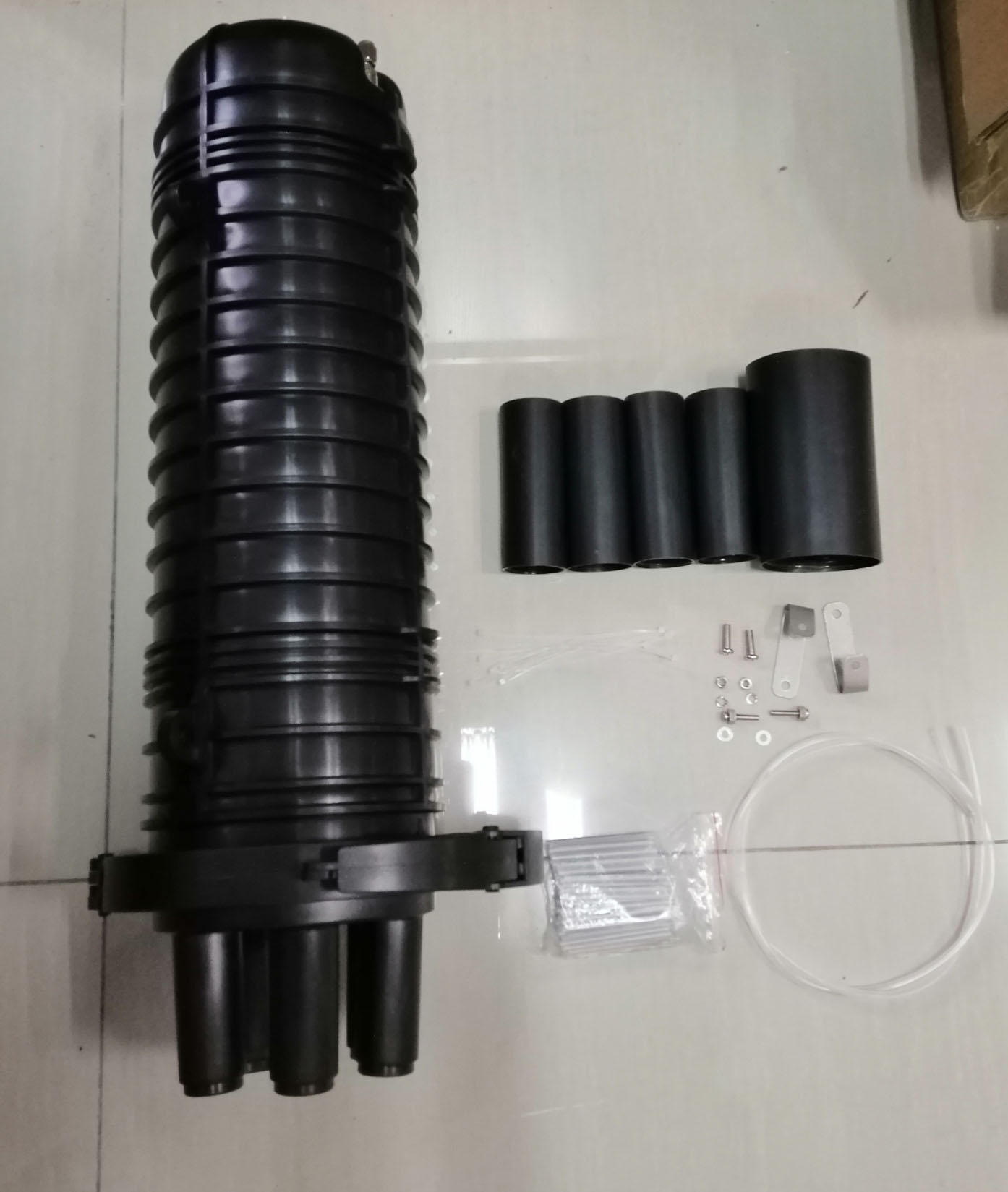

Accessories:

Item	Name	Specification	Qty
1	Fiber optic heat protect shrinkable sleeve	602.61.2 mm	As per using capacity
2	Cable tie	Length 120mm	10 pcs
3	Transparent tube	Plastic outside diameterФ5mm	1 meter
4	Heat shrinkable tube	Ф30*100mm black	4 pcs
5	Heat shrinkable tube	Ф60*120mm black	1 pcs
6	Aerial hanged accessories	Stainless steel	1 set
