ABS Inline IP65 48core Drop Cable Splicing Closure

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

Name: ABS Inline IP65 48core Drop Cable Splicing Closure
Brand: CSYHT
Price: 1 USD

Brand Name : CSYHT

Model Number : CH031

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : L/C, T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Dimension : 600X174X88.7

Material : ABS plastic

Splice tray : 1pcs

Max. capacity : 48 fibers

Cable port : 8 entry port 16 drop cable output port

Remark : Outdoor aerial hanged

Contact Now

Drop Cable Splicing 48 Core Inline Type Fiber Optic Splice Closure

Description:

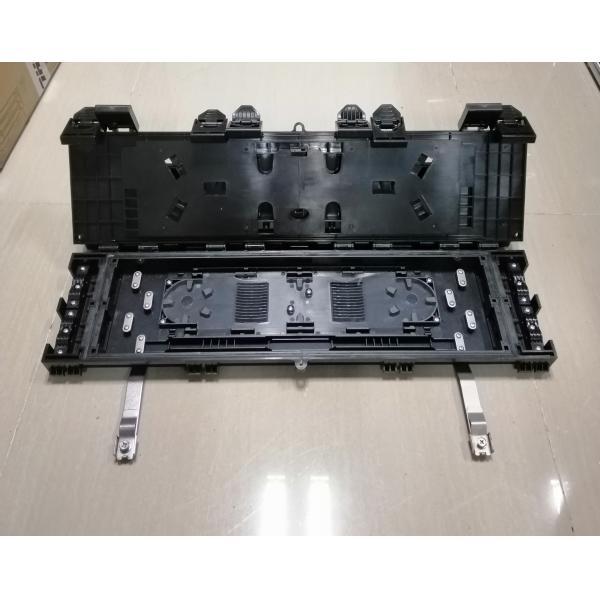

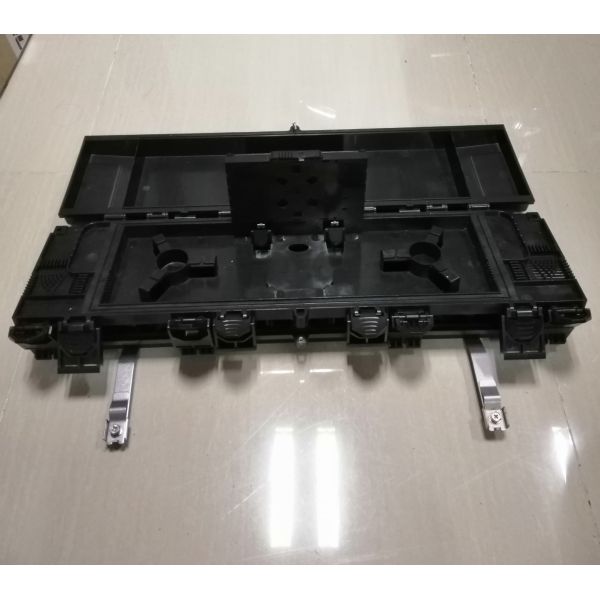

CH031 is an inline type fiber optic splice closure that used for fiber splicing, connection, distribution and protection.

It has two spaces for fiber splicing and distribution.

The upper space is for fiber distribution, it can load splitter box for PLC 1:8 steel tube type splitter, with 16 drop cable output ports.

The lower space is for fiber splicing and connection. It has 1pc splice tray for max. 48 fiber splicing, with 8 cable port (4 in 4 out).

Features:

Specification:

Model	Dimension(mm)	Material	Splice tray	Max. capacity	Cable port	Remark
CH031	600X174X88.7	ABS	1pc	48 fibers	8 entry port 16 drop cable output port	Outdoor aerial hanged

Accessories:

Item	Name	Specification	Qty
1	Fiber optic heat shrinkable protect sleeve	60mm2.61.2	As per using capacity
2	Insulation tape	0.15*17mm 8 yard black	1 roll
3	Cable tie	3mm*100mm black	12 pcs
4	Inner hexagon spanner	S4 black	1pc
5	Hook	CH006-50	2 sets

Packing:

ABS Inline IP65 48core Drop Cable Splicing Closure

Product Tags:

48core Drop Cable Splicing Closure
