Shrinkable Sealing 24f Fiber Splice Closure FTTB Aerial Hanged

Name: Shrinkable Sealing 24f Fiber Splice Closure FTTB Aerial Hanged
Brand: CSYHT
Price: 9 USD

China Shrinkable Sealing 24f Fiber Splice Closure FTTB Aerial Hanged wholesale

Brand Name : CSYHT

Model Number : CV017

Certification : CE RoHS ISO

Place of Origin : Shenzhen China

MOQ : 50

Price : USD 9-15 PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per day

Delivery Time : 10days

Material : PP

Dimension : 168x433.5mm

Cable Diameter (mm) : 7 to 20mm

Number of Cable Inlet/Outlet : 5

No. of Fibers per Tray : 12 (single core) 24 (double Core)

Max. No. of trays : 5

Sealing of Shells : Silicon Rubber

Sealing Type : Shrinkable sealing

Splicer Fiber Storage : 120core (5x24 splices)

Application : Outdoor aerial hanged, pole mounted, wall mounted

Contact Now

24-120F CAIXA DE EMENDA OPTICA 24F FECH. TERMOCONT.– CEO

Model Number: CV017

Product Description:

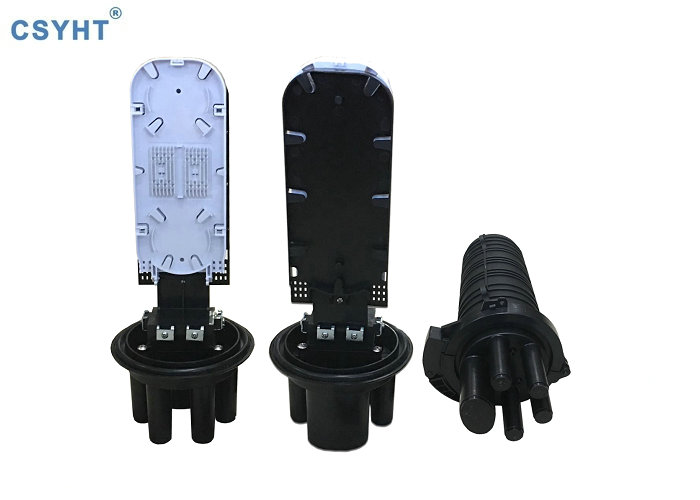

CV017 is a mfusion splice closure with IP68 high quality, for EPON GPON FTTH FTTB project fiber cable connect. It is made of high quality PP+UV material, For 12 fibers to 120fibers optic cable splice joint inside.

Features:

1) 4 round port and 1 big port, with optical fiber cable diameter from 7-20mm.

2) Sealing type: heat shrinkable sealing.

3) Well designed, easy to splice fiber cable inside.

4) Applications for: Ducts mounting, Aerial hang up, Wall Mounting and Pole Mounting.

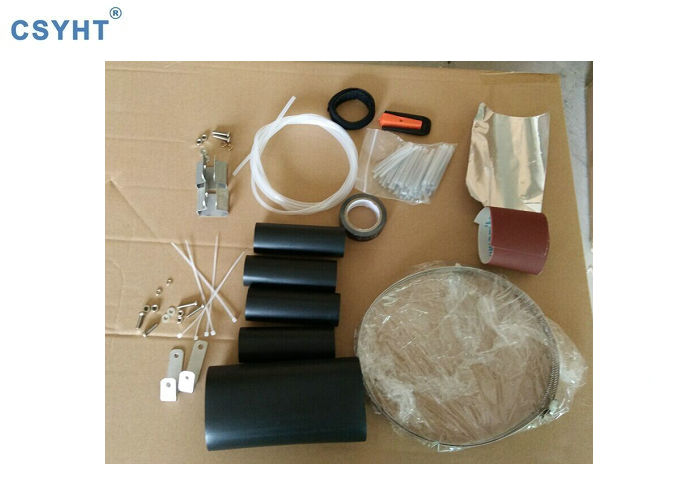

5) Standard with aerial mount kits, optional accessories for wall-mount and pole-mount.

Specification:

Model	Splice tray	Fiber core	Dimension(mm)	Weight(Kg)
CV017	5trays,each 24core	120C	φ168 × height 433.5	4kg

Pictures:

Product Tags:

Shrinkable Sealing Fiber Splice Closure

24f Fiber Splice Closure

FTTB Fiber Optic Splicing Closure

Shrinkable Sealing 24f Fiber Splice Closure FTTB Aerial Hanged Images
