120Fibers Dome closure vertical Splice Closure for Aerial Pole Mount IP68 with UV protection outdoor closure

Name: 120Fibers Dome closure vertical Splice Closure for Aerial Pole Mount IP68 with UV protection outdoor closure
Brand: CSYHT
Price: 9 USD

China 120Fibers Dome closure vertical Splice Closure for Aerial Pole Mount IP68 with UV protection outdoor closure wholesale

Brand Name : CSYHT

Model Number : CV017B

Certification : CE RoHS ISO

Place of Origin : Shenzhen China

MOQ : 50

Price : USD 9-15 PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs per day

Delivery Time : 10days

Material : PP with UV

Dimension : 168x433.5mm

Cable Diameter (mm) : 7 to 20mm

Number of Cable Inlet/Outlet : 5

No. of Fibers per Tray : 12 (single core) 24 (double Core)

Max. No. of trays : 5

Sealing of Shells : Silicon Rubber

Sealing Type : Shrinkable sealing

Splicer Fiber Storage : 120core (5x24 splices)

Application : Outdoor aerial hanged, pole mounted, wall mounted

Contact Now

120Fibers Fiber Optic Splice Closure for Aerial Pole Mount IP68 with UV protection outdoor closure

Product Description:

CV017B is a mfusion splice closure with IP68 high quality, for EPON GPON FTTH FTTB project fiber cable connect. It is made of high quality PP+UV material, the shell and the base open and close by a convinient hoop. The entry ports are sealed by heat shrinkable tube. It can open agian after sealed, reused again without changing the sealing material.

Features:

1) Splice tray: Max. 5pcs, each 24cores

2) Cable port: 4pcs round port φ20mm, 1pc oval port for supporting cable entry without cutting. All cable ports are heat shrink sealing.

3)Waterproof: IP68

4)Wall-mounting, aerial hanger and pole-mount,buried

5) Material: outer shell use high impact resistance PP materials with UV.Inside structure use ABS plastic .

Specification:

Model	Splice tray	Fiber core	Dimension(mm)	Weight(Kg)
CV017	5trays,each 24core	120C	φ168 × height 433.5	4kg

Accessories:

Item	name	Specification	unit	Qty(pcs)	remark
1	tube	D=Ф4mm thickness 0.6mm,white	M	2
2	Cable splitter	Size:S	PCS	1
3	Silver pater	15cm*10cm(with adhesive)	PCS	1
4	Heat shrinkable tube	Ф30*100mm/black	PCS	4
5	Heat shrinkable tube	Ф60*150mm/black	PCS	1
6	Plastic cable tie	3mm*120mm/white	PCS	5
7	Splice protect sleeve	60MM3.01.5	PCS	/	According to splice fiber qty
8	Insulating tape	0.1517mm8 /black	PCS	1
9	Magic tape	350MM15MM3MM/black	PCS	1
10	Abrasive paper	320#(280*60mm)	PCS	1
11	Aerial kits	201 stainless steel	sets	1

Optional accessories:

Item	Name	Model	Qty	Remark
1	Splice tray	R026	5pcs	Max. for 5pcs

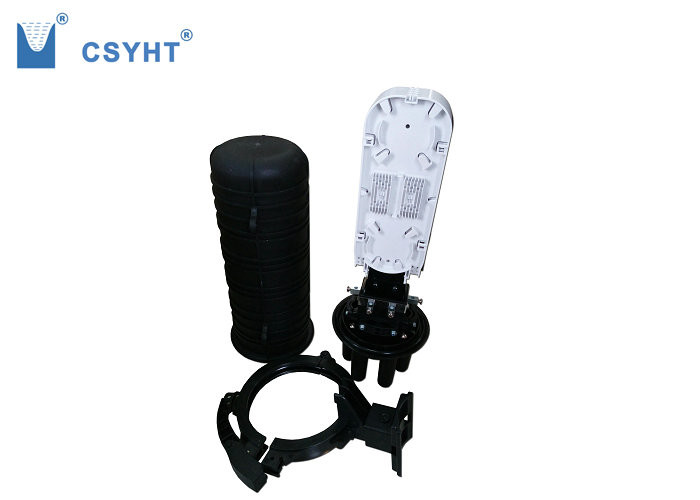

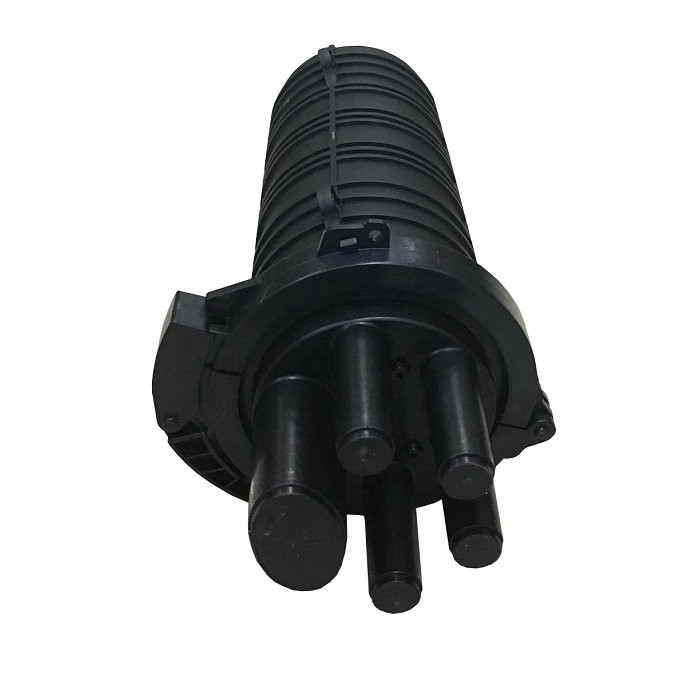

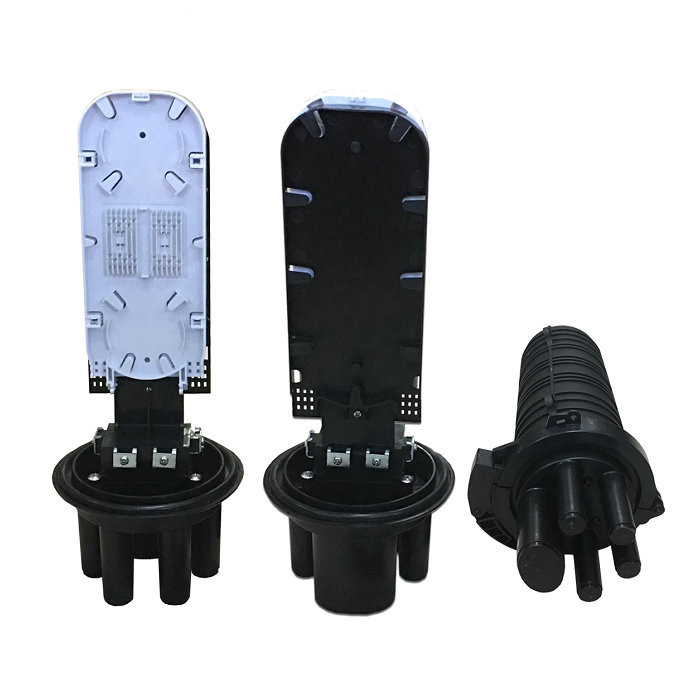

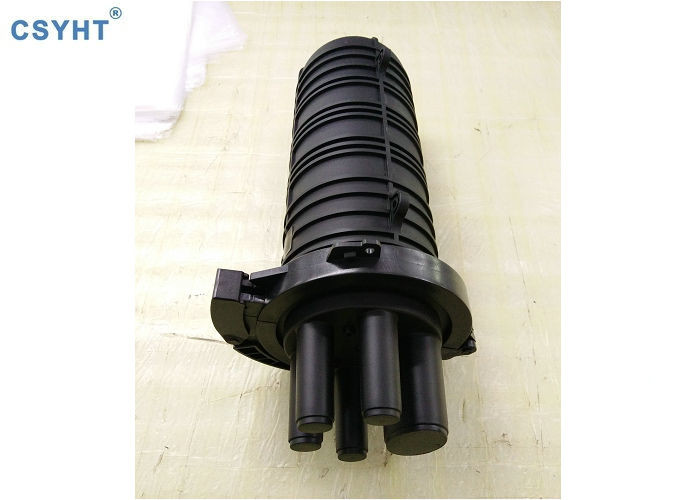

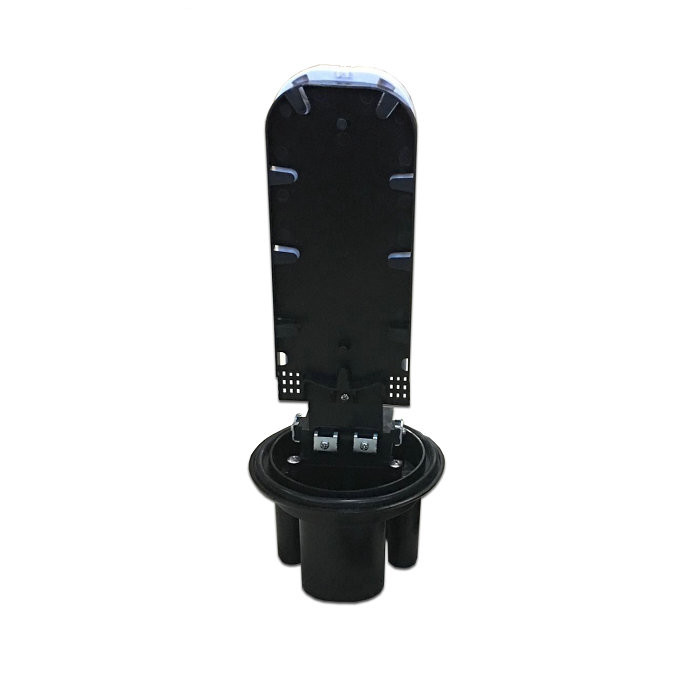

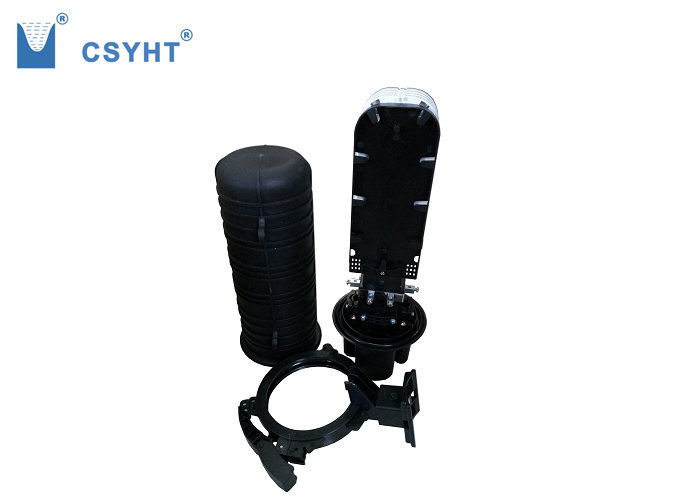

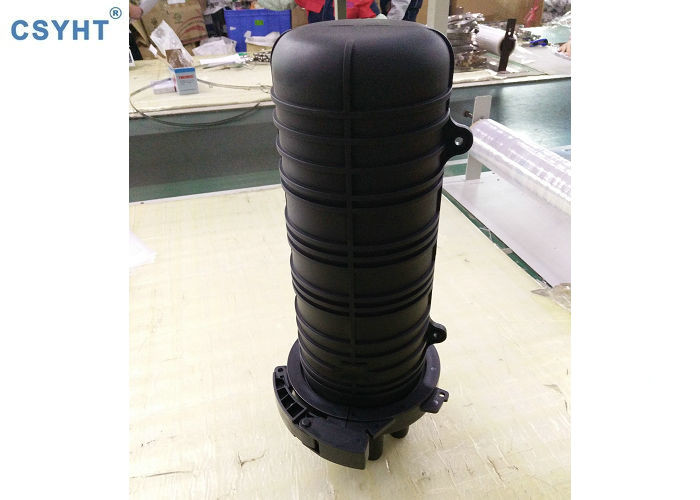

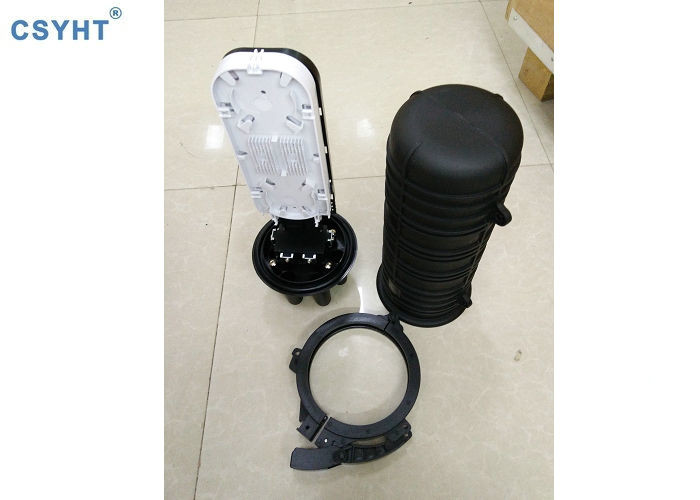

Pictures:
