576 cores Dome type heat-shrinkable sealing fiber splice closure with 1+6 ports

Name: 576 cores Dome type heatshrinkable sealing fiber splice closure with 16 ports
Brand: CSYHT/OEM/NM
Price: 10 USD

China 576 cores Dome type heat-shrinkable sealing fiber splice closure with 1+6 ports wholesale

Brand Name : CSYHT/OEM/NM

Model Number : CV016A/576C

Certification : CE RoHS ISO

Place of Origin : Shenzhen China

MOQ : 10pcs

Price : USD 10 - USD 48 per unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs per day

Delivery Time : 10days

Packaging Details : Carton box

Material : PP + UV plsatic

Dimension : φ228 × 527.5mm

Splice Tray : Max 48 pcs cassette 12core

Max. Capacity : 576 fibers

Cable Port : 2 cable in & 6 cable out

Sealing : Heat shrinkable sealing

Application : Outdoor aerial hanged, pole mountable, wall-mount

Service : OEM/ODM Customize available

Usage : Digicom networking FTTH

Contact Now

576 cores Dome type heat-shrinkable sealing fiber splice closure with 1+6 ports

Model: CV016/288c

Describtion:

CV016A is a dome type fiber optic splice closure that widely applied to the splicing, distributing variable optical cables.

Specifications:

(1) Splice tray: Max. 48pcs, each 12 fibers

(2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.

(3) Waterproof: IP68

(4) Heat shrinkable sealing structure

(5) Wall-mounting, aerial hanger and pole holding

(6) Material: high impact resistance PP materials with UV

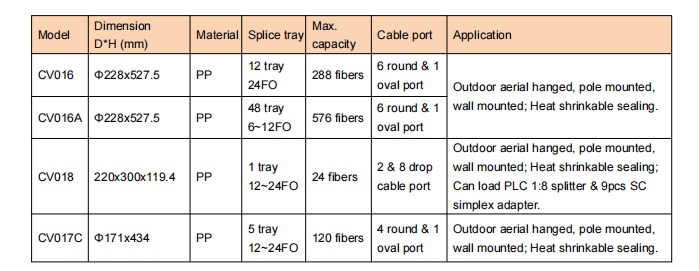

Model	Splice tray	Fiber core	Dimension(mm)	Weight(Kg)
CV016A	48 trays, each 12 fibers	572 fibers	φ228 × 527.5	5.1kg

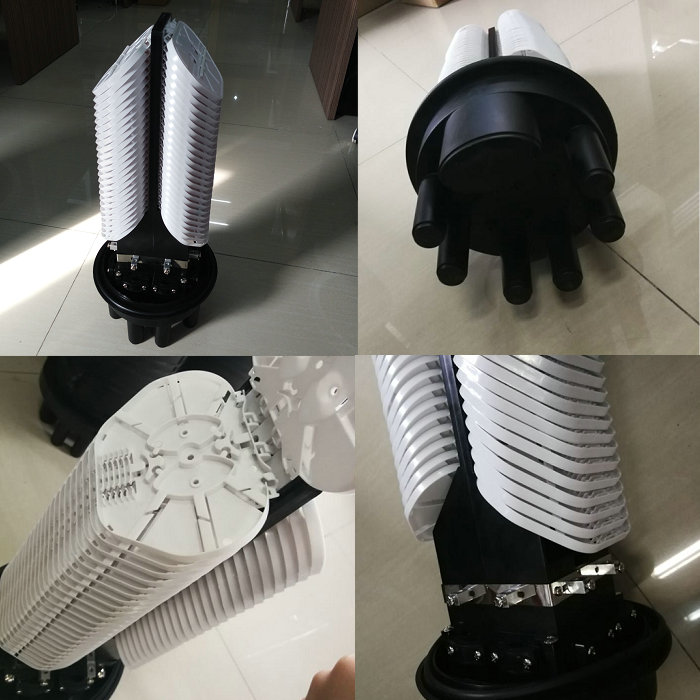

Picture:

576 cores Dome type heat-shrinkable sealing fiber splice closure with 1+6 ports
