Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications

Name: Black cold roll steel 1U 24FO FDB 19inch ODFRS205 for FTTH GPON CATV Telecommunications
Brand: CSYHT
Price: 1 USD

China Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications wholesale

Brand Name : CSYHT

Model Number : ODF-RS-205

Certification : IOS

Place of Origin : China

MOQ : >50

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 50000/day

Delivery Time : 5-8 days

Packaging Details : Carton

Color : Black or Grey

Material : Cold Roll Steel

Dimension(mm) : 430x205x44

Contact Now

1U 24FO FDB 19inch ODF-RS-205

Product specifications

Model: ODF-RS-205
Dimension(mm): 430x205x44
Material: cold roll steel
Adapter port: 12-24pcs SC duplex, SC simplex, LC duplex, FC simplex, ST simplex ...
Capacity: 12, 24, 48 fibers
Max. qty of splice tray: 2pcs OST-011 or OST-035
Max. capacity of splice tray: 12 - 24 fibers
Color: black or grey RAL7035
Application: 19inch rack mounted

Product details

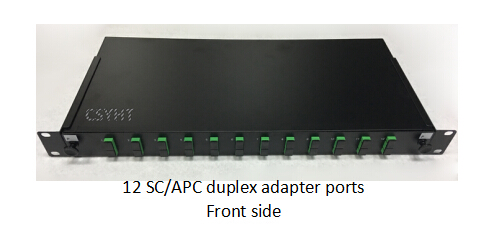

ODF-RS-205 is a 19 inch 1U 24FO FDB optic fiber distribution box with 12 SC duplex adapter port for rack mounted application.

Features:

Cold roll steel, electrostatic power painting

black color (grey white RAL7035 available)

19 inch rack mounted type

With sliding out tray, inside with max. 2pcs splice tray (Model: OST-011 or OST-035)

The rear cable ports are suitable for 2pcs M20 and 2pcs M25 cable PG gland

Double layer adapter plate, different adapter port and capacity are customized

Simple structure and easy operation, popular in European market

Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications

Accessories:

Heat shrinkable protection sleeve 45mm: 24pcs

Cable ties: 4pcs

Cable guider rings: 4pcs

Cable PG gland M20: 2pcs

Specification:

Model	Dimension	Capacity	Adapter port	Splice tray
ODF-RS-205	W430D205H44 (mm)	12, 24, 48 fibers	12 - 24 SC, LC, FC, ST adapter ports	Max. 2pcs splice tray OST-011 or OST-035

Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications

Packing information:

Each in one inner box, 5 sets per outside carton,

each carton 55x30x28cm, about 15kgs per carton

Black cold roll steel 1U 24FO FDB 19inch ODF-RS-205 for FTTH GPON CATV Telecommunications
