FOSC Mechanic Sealing Type Flat 288Cores Dome Closure FIST Flat Splice Box
FOSC Mechanic Sealing Type Flat 288Cores Dome Closure FIST Flat Splice Box (CV026) is a multifunctional flat dome closure which has two splitter space for PLC 1x8, 1x16, Max. 12pcs OST-061 fiber optic splice tray to meet max. 288 fibers and it can support wall mounted, pole mounted, aerial hanged, direct buried installation.
Features:
| P/N | CV026 | Usage | Outdoor Usage |
| Dimensions | Φ287.4*393.1 mm | Splitter | Two splitter space for PLC 1x8, 1x16 |
| IP Rate | IP68 | Splice Capacity | 288 FO |
| Splice tray | 12 splice trays with 24FO | Material | High impact PP plastic |
| Adapter Port | max. 18pcs SC simplex adapters | Application | For splicing,distributing optical cables and splitting |
| Cable Port | 6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting |

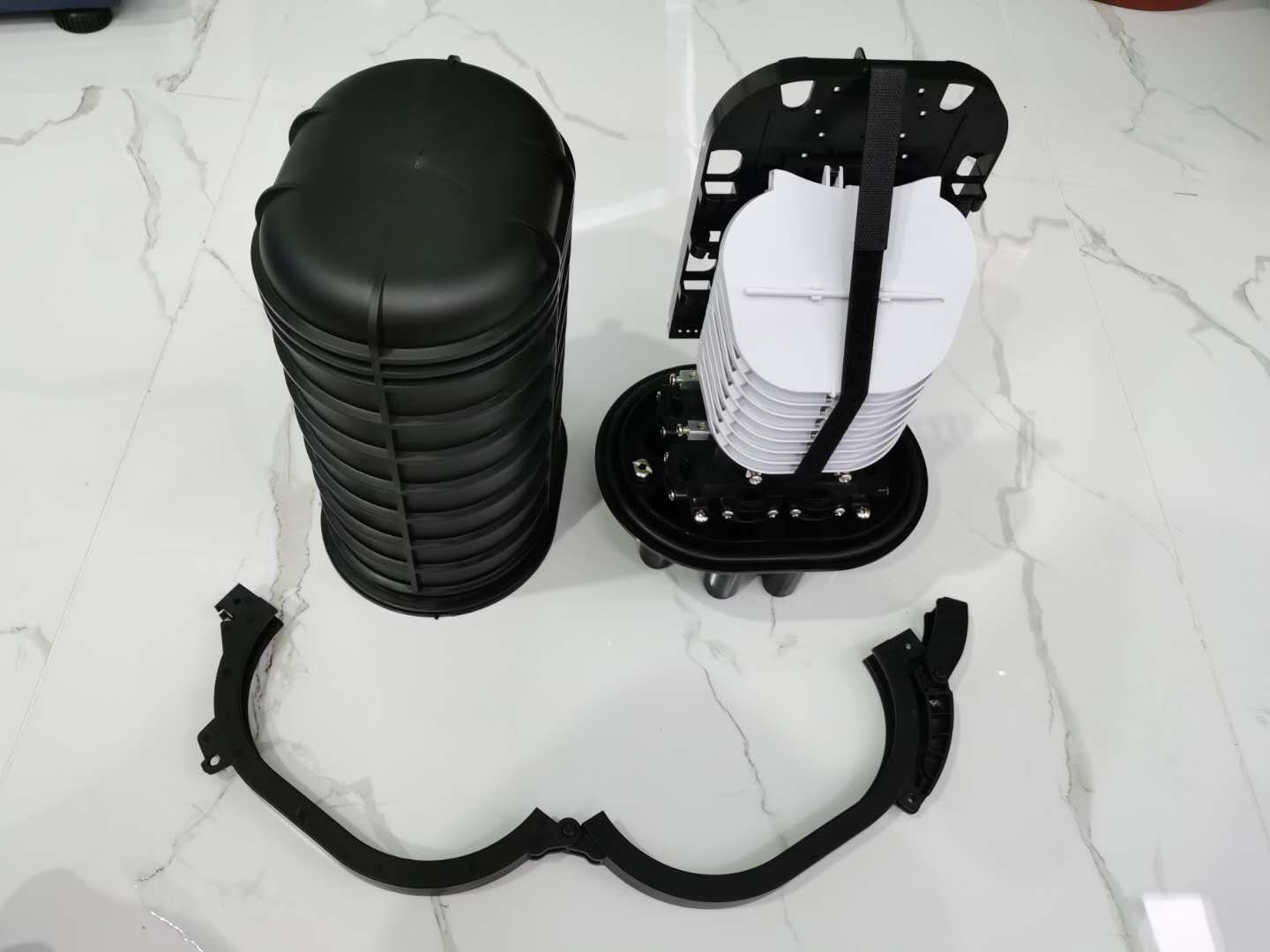

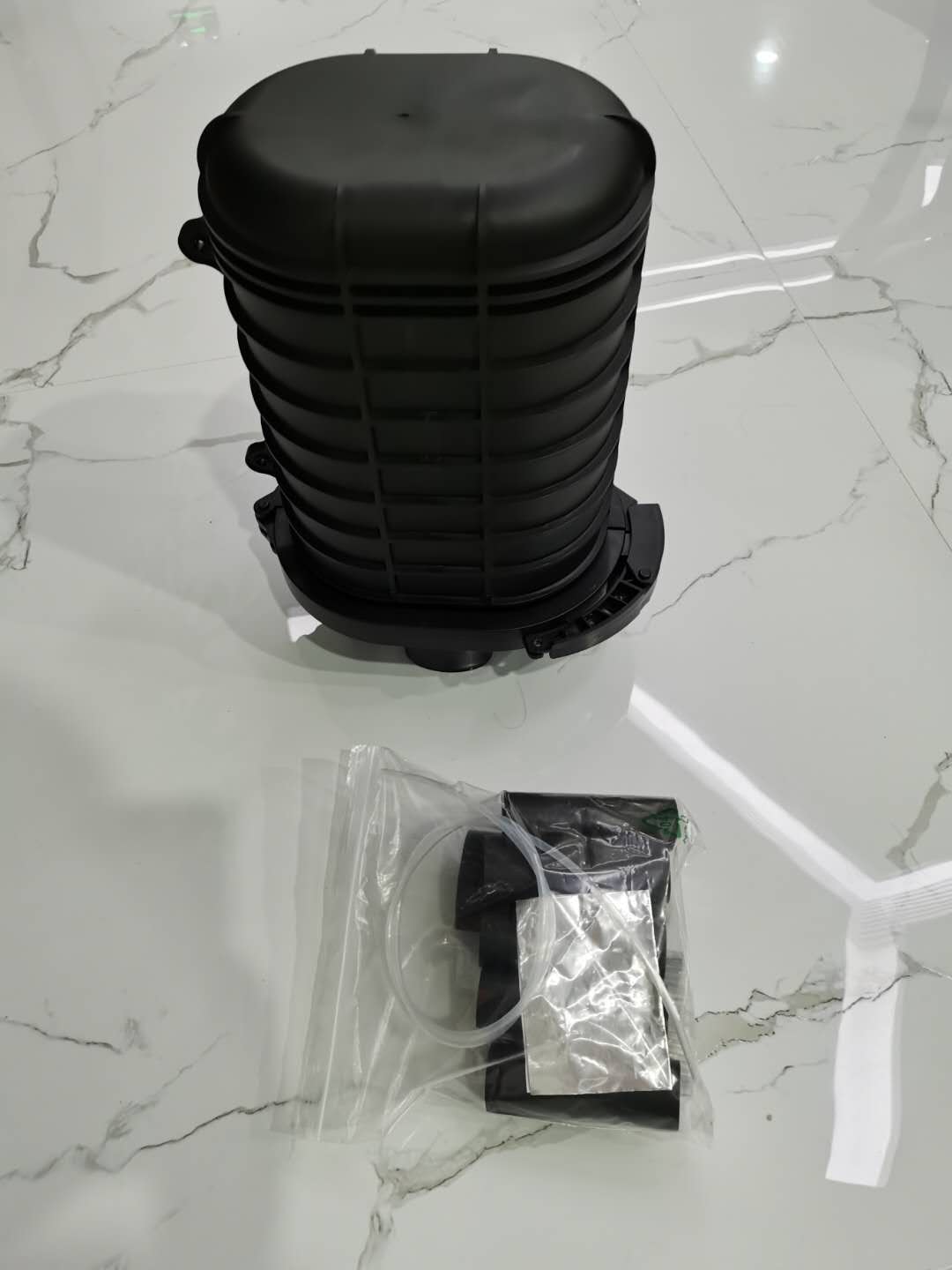

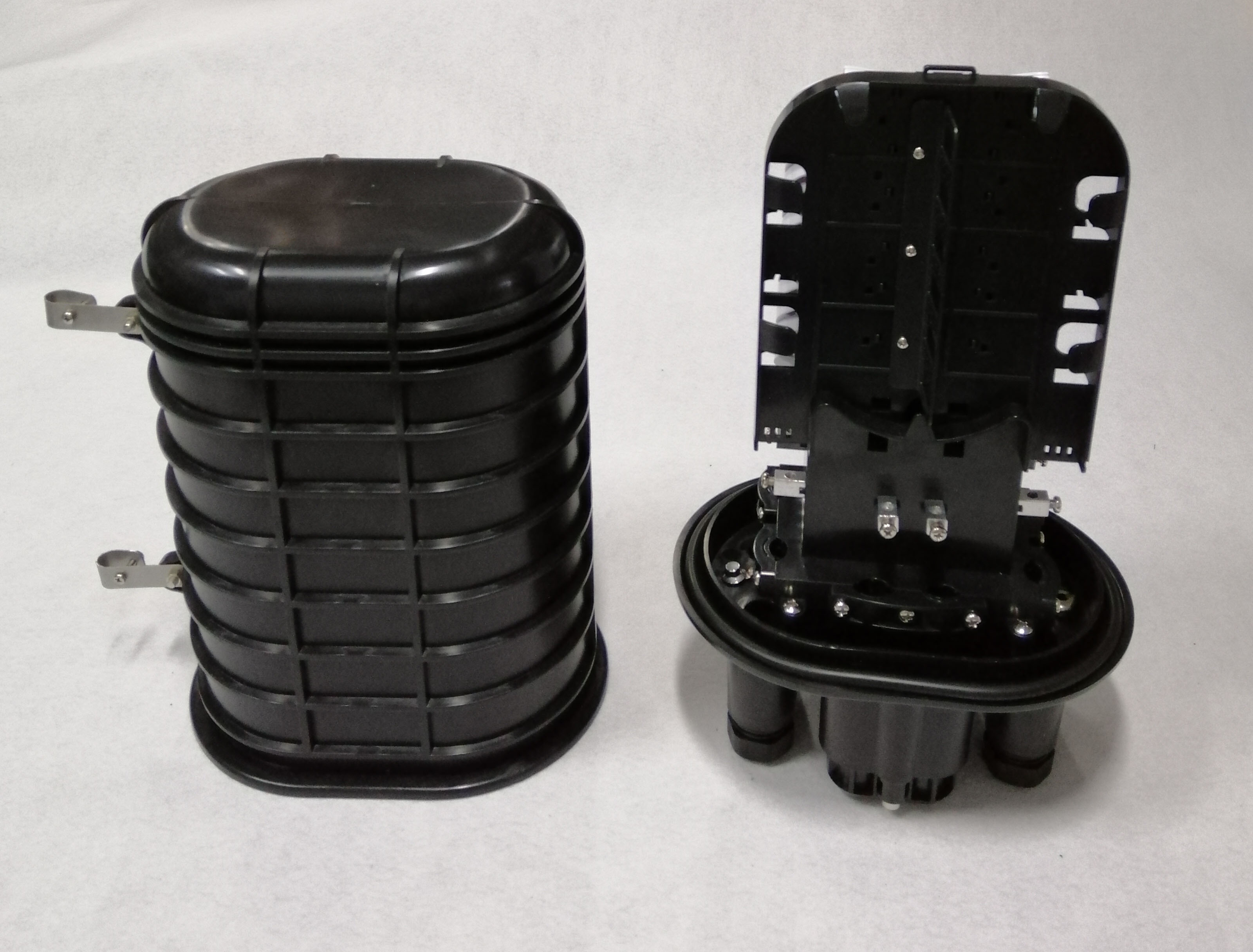

Product Pictures:
Accessory list:
| Item | Name | Specification | Qty |
| 1 | Plastic tube | Outside Ф4mm, thickness 0.6mm, plastic, white | 1 meter |
| 2 | Cable tie | 3mm*120mm, white | 12 pcs |
| 3 | Inner hexagon spanner | S5 black | 1 pc |
| 4 | Heat shrinkable protection sleeve | 60*2.6*1.0mm | As per using capacity |
Application:
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Factory Information (more information please view our company website: www.szyht.com.cn):
Shenzhen YHT Broadband Equipment Co., Ltd. is a high technology company having its own brand “CSYHT” and specializing in R&D, manufacture and sales of fiber optic products.
v It was established in 2003, and grows up rapidly.
v In 2011, branch factory was established in Huizhou city.
v In 2014, branch factory was renamed, Huizhou YHT Broadband Equipment Co., Ltd.
v In November 2016, factory moved to YHT industry park.
v The area of YHT industry park is about 36,000 square meters, more than 8 buildings.
The main products include 19’’ fiber optic patch panel, distribution box, ODF, FTTH terminal box, fiber optic splice closure, fiber optic cabinet, optical splitter box, fiber optic connector, patch cord, pigtail, adapter, attenuator etc. which are widely used in FTTx, GPON, CATV, telecommunications and so on.
